HMI

HMI's series contains PLCs, operator panels, and touch panel computers that come in various sizes, especially for size-sensitive factory environments.

Exceptional Connectivity

Comprehensive links between PLCs with easy access to the cloud

Intuitive Visualization

Object-oriented HMI Software HMINavi free support

Reliable Design

Wide operating temperature range and IP66 front panel

To fulfill the stringent standards of the automation market, especially for packaging, label slitting, and food & beverage applications, Advantech developed the WOP-200K series for diverse operations that involve PLCs, thermal controllers, inverters, and sensors. Powered by a 32-bit RISC ARM9™ processor with 64 MB working memory. The WOP-200K series systems are available with LCDs of varying size (from 4.3” to 15”).

Seamless Connection Drives Convenient IoT Applications

Supports 500+ PLC Industrial Communication Protocols

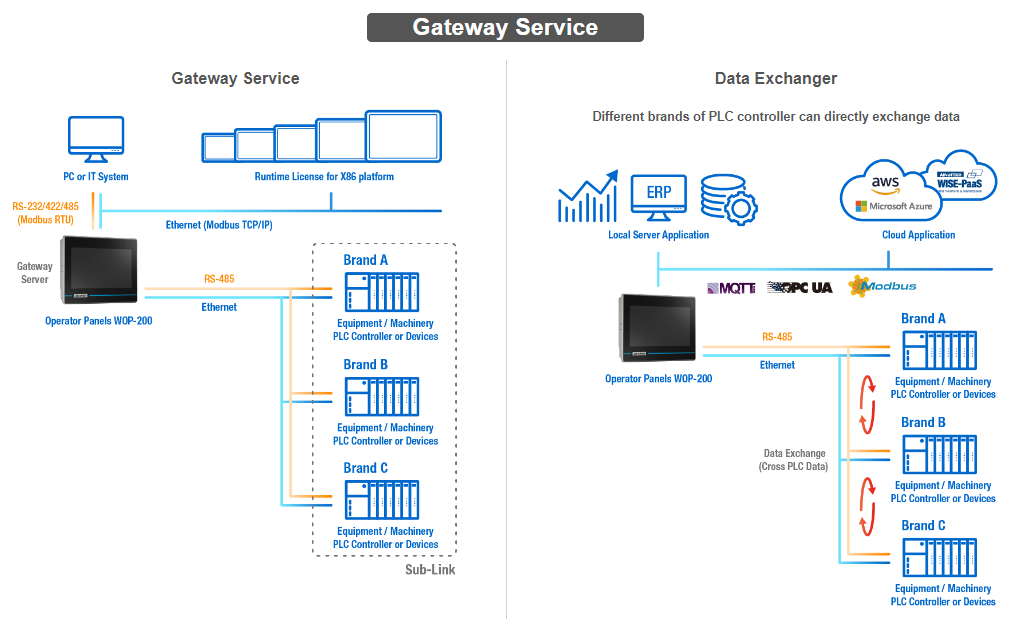

WOP-200K can connect to 90% of global PLC devices. The data exchanger function can easily exchange a variety of PLC data. The powerful connectivity makes WOP-200K a perfect fit to existing or future IoT solutions.

Achieve Easy Access to the Cloud with the MQTT Protocol

With the latest MQTT uplink communication protocol, the WOP-200K series makes it easy to achieve OT & IT integration. Users can easily turn legacy machinery into intelligent machinery while having all important data and backups managed by cloud services.


Smart HMI Solutions Fulfill Intuitive Machine Visualization

WOP-200K systems are added to Advantech’s HMINavi software – a human-machine interface designed for HMI applications to reduce labor and improve manufacturing efficiency through visualization.



Over 50 screen objects can be used for all types of HMI visualizations
Data logger with trend display, with up to 16 different data sources for each display
Support data collection, alarm monitoring, recipe handling and operation logging
No limitation on the number of tags for the internal I/O points

Industrial-Grade Design Assures Reliable Field Implementation

6 screen sizes ensure flexible installation in a variety of work environments

Conformal coating mother boards increase 80% lifecycle

IP66-rated waterproof front panel

 -15 ~ 65°C wide operating temperature range

 -15 ~ 65°C wide operating temperature range

Safety certification UL 61010-1 & UL 61010-2-201

Isolation power input design & 20W low power consumption

Reliable Real-Time OS Reduces Security Issues

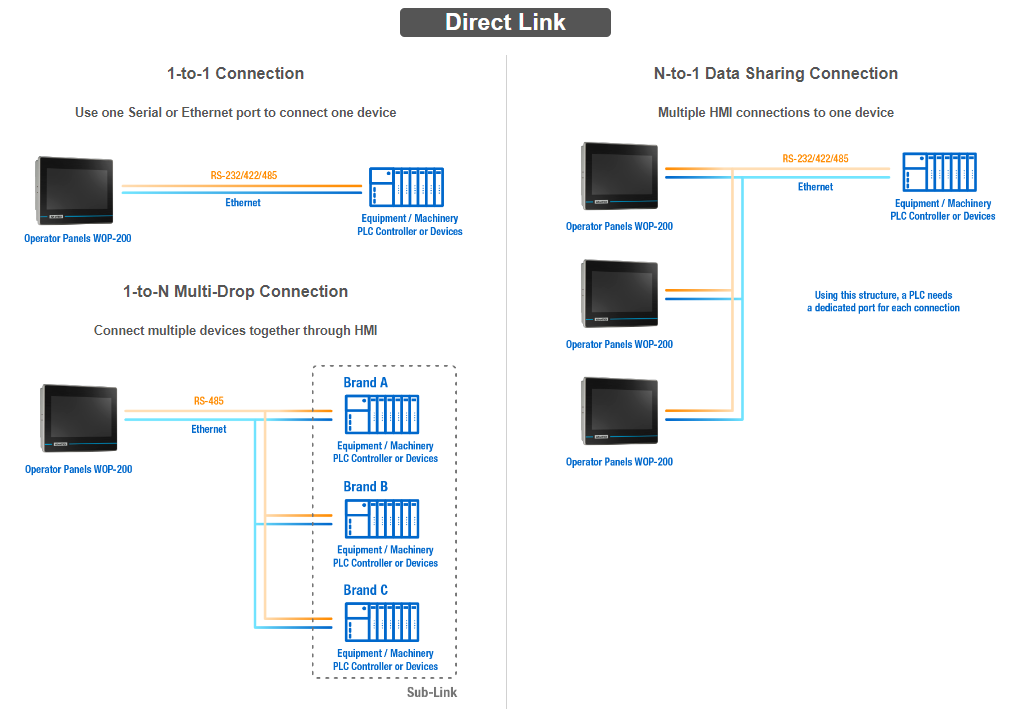

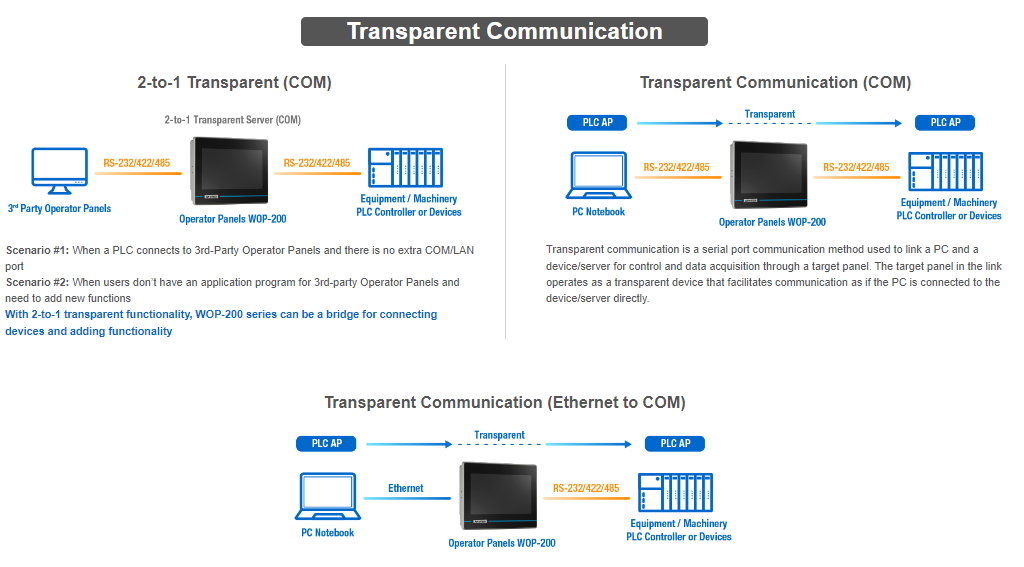

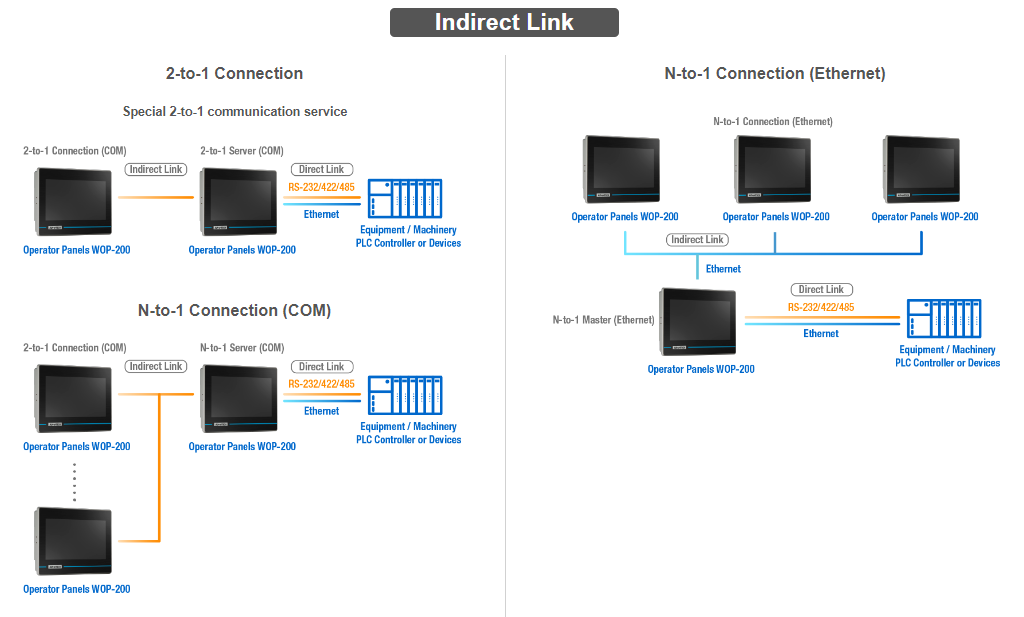

Flexible Communication Architecture for Various Automation Systems
