IoT Ethernet I/O Modules: ADAM-6000/6200

Supporting Modbus & IoT protocols, Ethernet remote data acquisition modules offer analog, RTD, thermocouple, digital, relay and counter I/O.

Advantech's Ethernet I/O Modules, ADAM-6000/6200 series, accomplish the integration easily through the latest internet technology, so that it can remotely monitor the device status more flexibly.


Feature Highlights

Peer-to-Peer (P2P) Connection

  • Easy channel mapping from different I/O modules without extra programming effort or additional controllers
  • Utilizes Peer-to-Peer modules, just configure settings through ADAM.NET utility

Graphic Condition Logic (GCL)

  • GCL function is built-in ADAM-6000 and ADAM-6200 modules for users to easily set up logic rules in any application
  • User defined logic rules through graphical configuration environment in ADAM.NET Utility
  • No additional controllers or programming is needed

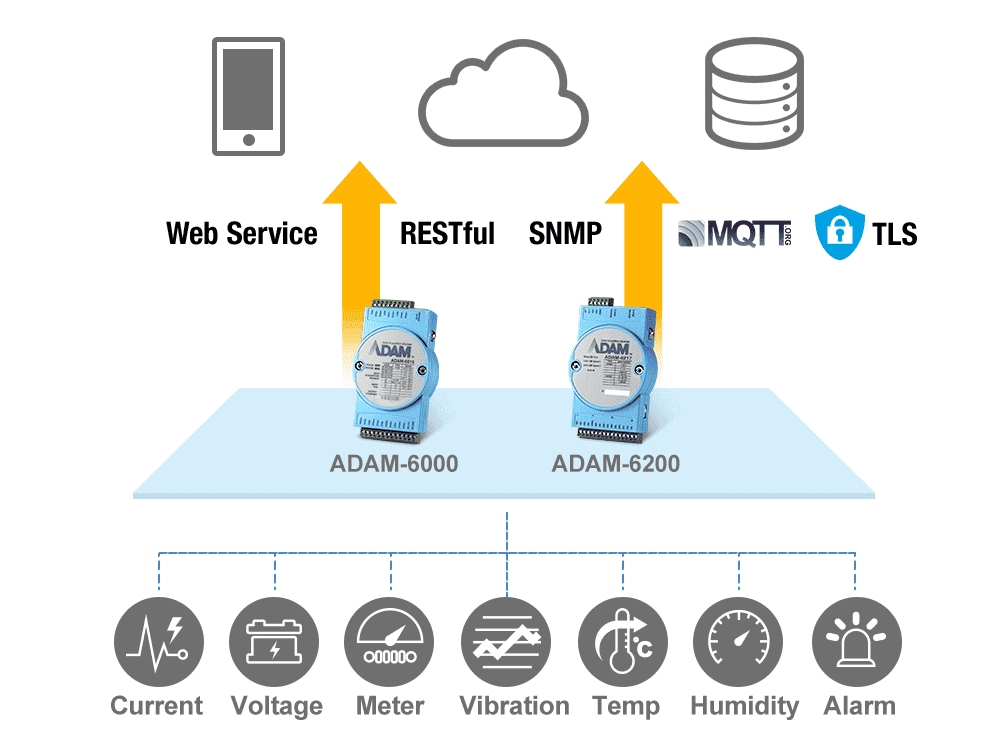

Easy Communication with Multiple IoT Protocols: MQTT, SNMP, RESTful, TLS

  • Cloud:

    supports Azure IoT Hub

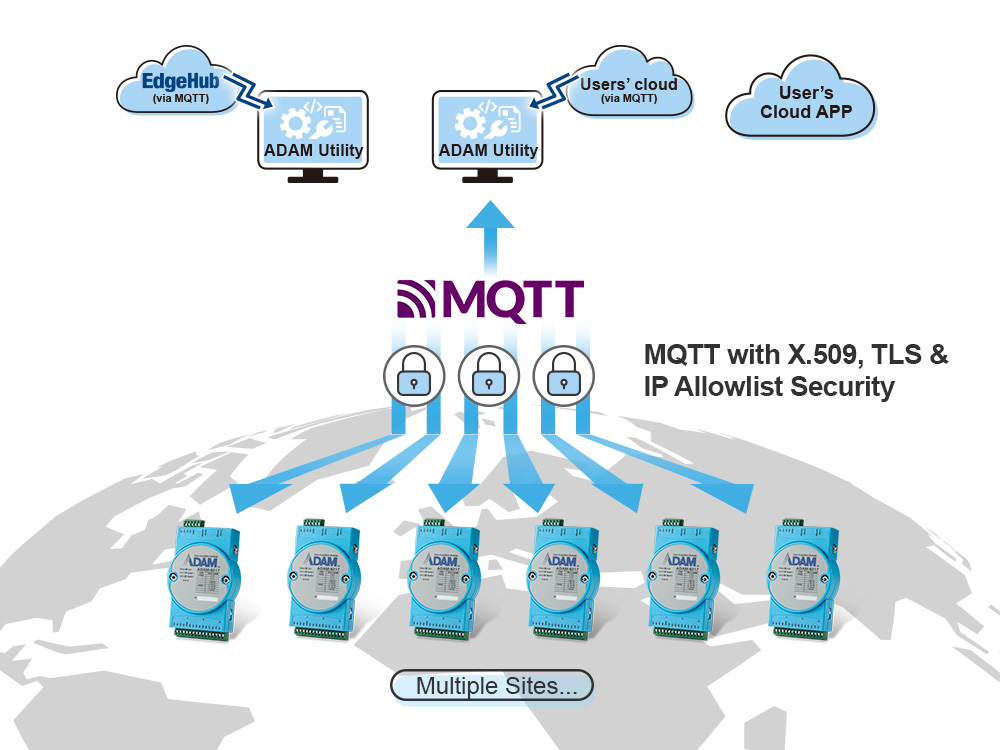

  • MQTT:

    Actively publish MQTT message with user defined interval

    Shortens downtime with alarm event notification

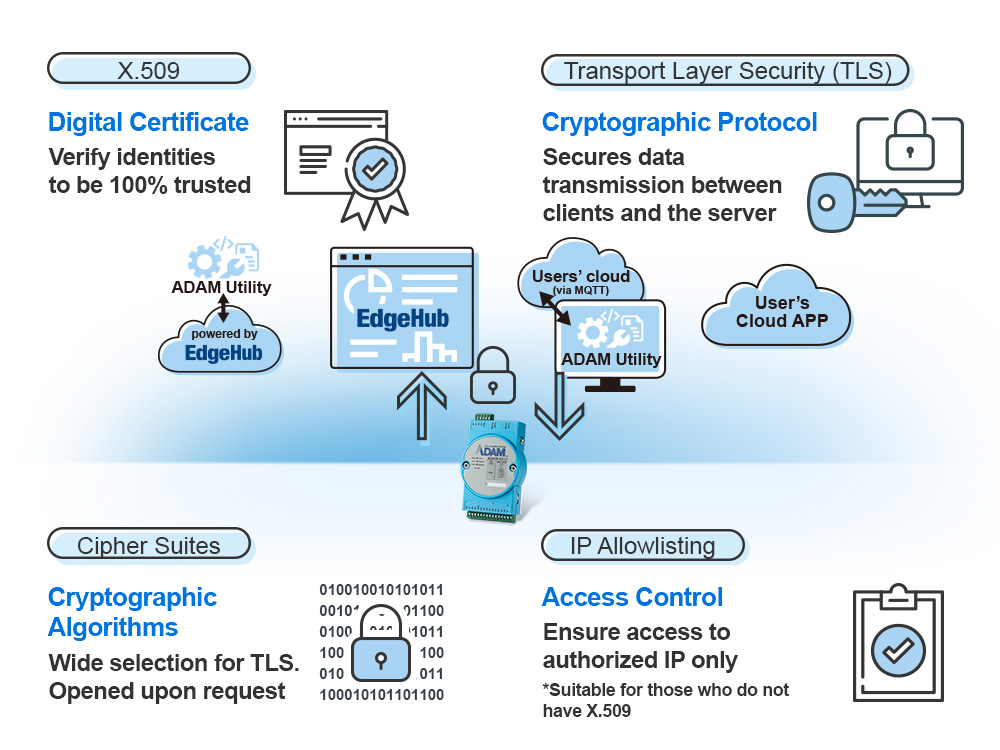

    Privacy assured with the TLS (Transport Layer Security)

    Simplifies configuration for MQTT using the ADAM.Net Utility

  • SNMP:

    Simple way to monitor I/O data on NMS (Network Management System)

    Supports SNMP v1/v2c

    SNMP trap to notify alarm event

    Reduces implementation cost with ADAM MIB (Management Information Base) file

Flexible Deployment with Daisy Chain Networking and Auto-Bypass Protection

  • Daisy chain connectivity offers flexible cabling and space saving capabilities. With Ethernet auto-bypass function supported to prevent accidental power failures if one of the modules unexpectedly shuts down.

FAQ: How to Select the Right Remote I/O for Your Industrial Applications?

The article will take you through step-by-step beginning with an analysis of the advantages of Remote I/O, its physical interfaces, protocols, and I/O functions to choose the right Remote I/O that suits your industrial needs.


Advantech IoT Academy

ADAM-6000/6200 Series: Intelligent ethernet remote I/O empower the IT/OT convergence

In this course, you will learn the advantages of ADAM-6000/6200 series and their applications.

Take course



Technical Training of How to Configure ADAM Remote I/O Modules

This course will introduce the knowledge and necessary skills for using ADAM-4000/4100/6000/6200/6300 Series Modules as Data Acquisition device.

Take course



Quick Find

27 total products

Part Number Description Analog Input Analog Output Counter/Encoder Input Digital Input Digital Output Environment Relay Output RTD Input Thermocouple Input
    Channels Resolution(Bits) Sampling Rates(S/s) Channels Resolution Channels Channels Channels Operating Temperature Channels Channels Channels
Part Number Description Analog Input Analog Output Counter/Encoder Input Digital Input Digital Output Environment Relay Output RTD Input Thermocouple Input
    Channels Resolution(Bits) Sampling Rates(S/s) Channels Resolution Channels Channels Channels Operating Temperature Channels Channels Channels
ADAM-6015-DE 7RTD IoT Modbus Ethernet Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A -40~70 °C (-40~158 °F) N/A 7 N/A
ADAM-6017-D 8AI/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O 8 16-bit 100 S/s (sum) N/A N/A N/A N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6018+-D 8Thermocouple IoT Modbus/SNMP/MQTT Ethernet Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A -40~70 °C (-40~158 °F) N/A N/A 8
ADAM-6022-A1E 6AI/2AO/2DI/2DO Ethernet PID Module 6 16-bit 10 S/s (sum) 2 12-bit N/A N/A N/A -10~50 °C (14~122 °F) N/A N/A N/A
ADAM-6024-D 6AI/2AO/2DI/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O 6 16-bit 10 S/s (sum) 2 12-bit N/A N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6050-D1 18-Ch Isolated DI/O Module N/A N/A N/A N/A N/A 12 N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6051-D 12DI/2Counter/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O N/A N/A N/A N/A N/A 14 N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6052-D 8DI/8DO(source type) IoT Modbus/SNMP/MQTT Ethernet Remote I/O N/A N/A N/A N/A N/A 8 N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6060-D 6Relay/6DI IoT Modbus/SNMP/MQTT Ethernet Remote I/O N/A N/A N/A N/A N/A 8 N/A N/A -40~70 °C (-40~158 °F) 6 N/A N/A
ADAM-6066-D 6Pwer Relay/6DI IoT Modbus/SNMP/MQTT Ethernet Remote I/O N/A N/A N/A N/A N/A 8 N/A N/A -40~70 °C (-40~158 °F) 6 N/A N/A
ADAM-6117EI-AE 8AI EtherNet/IP Fieldbus Remote I/O 8 16-bit 10 S/s (sum) N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A
ADAM-6117PN-AE 8AI PROFINET Fieldbus Remote I/O 8 16-bit 10 S/s (sum) N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A
ADAM-6150EI-AE 8DI/7DO EtherNet/IP Fieldbus Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A
ADAM-6150PN-AE 8DI/7DO PROFINET Fieldbus Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A
ADAM-6151EI-AE 16DI EtherNet/IP Fieldbus Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A
ADAM-6156EI-AE 16DO EtherNet/IP Fieldbus Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) N/A N/A N/A
ADAM-6160EI-AE 6Relay EtherNet/IP Fieldbus Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A -10~70 °C (14~158 °F) 6 N/A N/A
ADAM-6217-B 8AI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O 8 16-bit 10 S/s (sum) N/A N/A N/A N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6224-B 4AO/4DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O N/A N/A N/A 4 12-bit N/A 4 N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6250-B 8DO/7DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O N/A N/A N/A N/A N/A 8 N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6251-B 16DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O N/A N/A N/A N/A N/A 16 N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6256-B 16DO IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
ADAM-6260-B 6Relay IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O N/A N/A N/A N/A N/A N/A N/A N/A -40~70 °C (-40~158 °F) 6 N/A N/A
ADAM-6266-B 4Relay/4DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O N/A N/A N/A N/A N/A 4 N/A N/A -40~70 °C (-40~158 °F) 4 N/A N/A
WISE-4010LAN-B 4-ch CI 4-ch DO IoT Ethernet I/O Module 4 12-bit 10/100 S/s (per channel) N/A N/A N/A N/A 4 (TTL) -40~70 °C (-40~158 °F) N/A N/A N/A
WISE-4050LAN-B 4-ch DI and 4-ch DO IoT Ethernet I/O Mod N/A N/A N/A N/A N/A N/A N/A N/A -40~70 °C (-40~158 °F) N/A N/A N/A
WISE-4060LAN-B 4-ch DI and 4-ch Relay IoT Ethernet I/O N/A N/A N/A N/A N/A N/A N/A N/A -40~70 °C (-40~158 °F) 4 N/A N/A
