- Durable touchscreen with 5-wire resistive touch control
- Front-facing LED indicators to show operating status
- True-flat touchscreen with IP66-rated front panel and default VESA 100x100
- Wide operating temperature range -20 ~ 60 °C (-4 ~ 140 °F)
- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- Built in computing engineering to meet the rapid docking between SCADA and MES
- HMI system can be used to expand the third-party work report, electronic operation instruction and other rich scenes.
- Combined with equipment efficiency or work order management solutions, it can control equipment real-time efficiency and output status

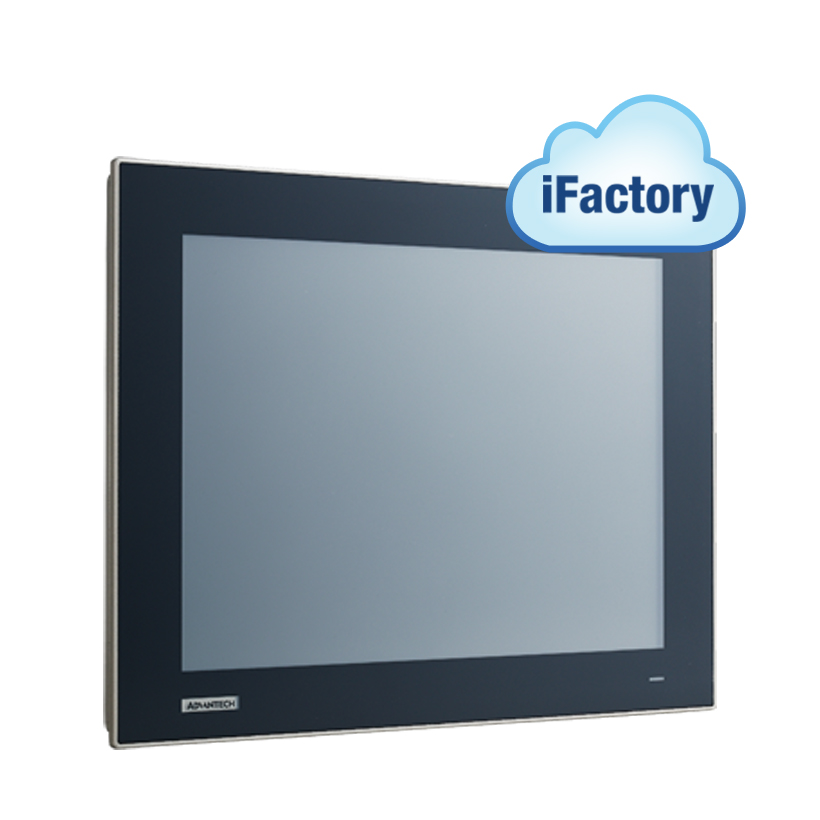

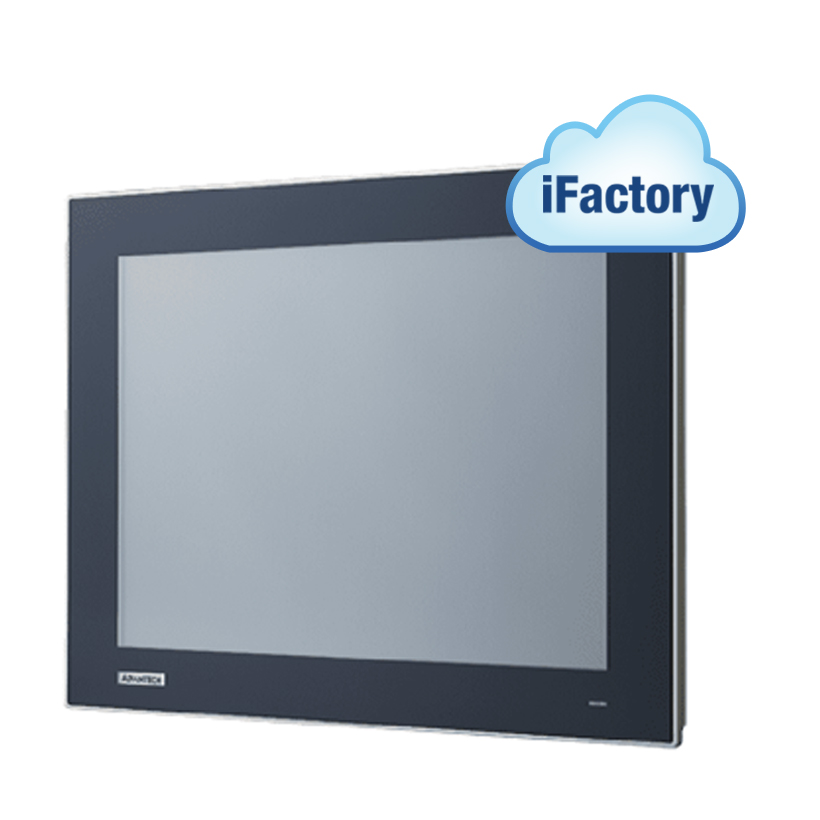

SRP-IFS200-M15AG, an upgraded version of TPC-1551T(A), is a thin client terminal equipped with a 15" XGA TFT LCD, low-power Intel® Atom™ E3845 1.91GHz quad core processor, and 4GB DDR3A SDRAM to deliver high performance yet compact and fanless computing system.
Product Specifications Download Spec
- Part Number
- Details
-
SRP-IFS200-M15AG
- CPU
- Memory
- Storage
- LAN
- I/O
- Intel® Atom™ E3845 1.91GHz Quad-core processor
- 1 x SO-DIMM with 4GB DDR3L SDRAM (supports up to 8G)
- 1 x 2.5" SATA SSD
- 10/100/1000 Base-T x 2 LAN (2 x Intel® I210)
- RS-232 x 1, RS-232/422/485 x 1, USB3.0 x 1, USB2.0 x 1
- Ingress Protection
- Vibration Protection
- Operating Temperature
- Storage Temperature
- Front Panel IP66
- 1 Grms, random
- -20~60 °C (-4~140 °F)
- -30~70 °C (-22~158 °F)
Hardware
-
CPU
SRP-IFS200-M15AG Intel® Atom™ E3845 1.91GHz Quad-core processor -
Memory
SRP-IFS200-M15AG 1 x SO-DIMM with 4GB DDR3L SDRAM (supports up to 8G) -
Storage
SRP-IFS200-M15AG 1 x 2.5" SATA SSD -
LAN
SRP-IFS200-M15AG 10/100/1000 Base-T x 2 LAN (2 x Intel® I210) -
I/O
SRP-IFS200-M15AG RS-232 x 1, RS-232/422/485 x 1, USB3.0 x 1, USB2.0 x 1
Environment
-
Ingress Protection
SRP-IFS200-M15AG Front Panel IP66 -
Vibration Protection
SRP-IFS200-M15AG 1 Grms, random -
Operating Temperature
SRP-IFS200-M15AG -20~60 °C (-4~140 °F) -
Storage Temperature
SRP-IFS200-M15AG -30~70 °C (-22~158 °F)
