EKI-9512 Series

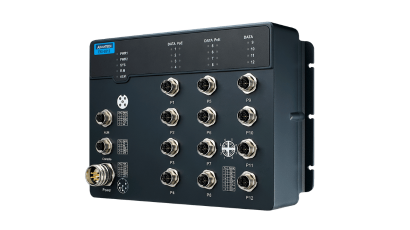

EKI-9512G-4GMPX

EN50155 Managed PoE Ethernet Switch with 12GE, 24-110VDC

  • 8 x M12 X-Coded 10/100/1000 Mbps PoE ports + 4 x M12 X-Coded 10/100/1000 Mbps ports
  • Complies with EN50155 & EN50121-3-2
  • Operating temperature: -40 ~ 75°C
  • Operating power input range: 16.8~137.5VDC
  • Supports X-Ring Pro for rapid and predictable convergence
  • Supports IXM for fast and easy maintenance
  • Supports N-Key for quick configuration and backup
  • M12 connector with IP67 rugged housing
  • PoE total power budget up to 150W

Certifications:

Support Links:

Datasheet Download 3D Model Tải Tài Liệu Kỹ Thuật
  • EN50155 Managed PoE Ethernet Switch with 12GE, 24-110VDC

Specifications

Ethernet Communication
M12 D-code (10/100Base-T) Number
  • 0
M12 X-code (10/100/1000Base-T) Number
  • 12
Bypass Function (Pair)
  • 0
Switch Properties
Jumbo Frame
  • 9,216 bytes
MAC Table Size
  • 8K
Packet Buffer Size
  • 4.1M bit
Switch Fabric Speed
  • 24Gbps
Certification
EMC
  • CE, EN55032/24, EMC DIRECTIVE 2014/30/EU
EMI
  • CISPR 32, FCC Part 15 Subpart B Class A
EMS
  • EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
Vertical Market
  • EN50155, EN50121-3-2, EN61000-6-2
Freefall
  • IEC 60068-2-31
Shock
  • IEC 61373
Vibration
  • IEC 61373
Environment
Relative Humidity
  • 5~95%
Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
  • -40 ~ 85°C (-40 ~ 185°F)
Mechanism
Dimensions (W x H x D)
  • 254 x 174 x 64.5 mm
Enclosure (Metal)
  • Aluminum die-casting
IP Rating
  • IP67
Mounting (Wall)
  • Yes
Weight
  • 3.7 kg
PoE Information
PoE Budget
  • Up to 150W
PoE Port Number
  • 8
Power
Power Connector Type
  • M23
Power Consumption
  • 17W (system)
Power Input (DC)
  • 24/ 28/ 36/ 48/ 72 / 96 / 110 VDC
Power Operating Current
  • 0.15A @ 110VDC (system)
Power Operating Voltage
  • 16.8 ~ 137.5 VDC
Redundant Dual Inputs
  • Yes
Protection
Reverse Polarity
  • Present
Overload Current
  • Present
Warranty
Warranty Period
  • 5 years

Accessories
